Universal standalone data logger for any type of external sensor
Newsteo offers its range of dataloggers to connect different types of sensors. After connecting the sensor, measurements can be wirelessly transmitted and sensors are then connected to a wireless sensor network.

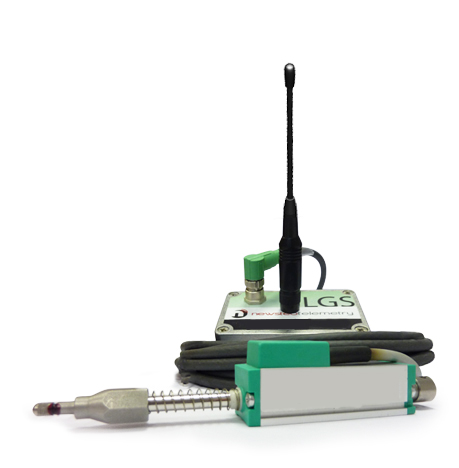

- Data logger for extensometer or crackmeter: Connect 1 to 3 extensometers or other sensor with a potentiometric interface.
Data logger for 4-20 mA sensor: Connect any 4-20 mA sensor
- Data logger for dry contact sensor or relay: Connect any dry contact sensor
OUR PRODUCTS
Our range of dataloggers allows us to answer your need
Interface: Potentiometric for extensometer, crackmeter or other sensor
Measurement range: 0 à 100%
Impedance: 1 kOhm … 65 kOhm
IP Level: IP65
Data transfer: Radio
Wide range of extensometer and crackmeter proposed by Newsteo
- Ideal for geotechnical instrumentation, Structural Health Monitoring (SHM)
Interface: 4-20 mA
Measurement range: 0 … 20 mA
Impedance: 62 Ohm
Sensor supply : Not applicable
IP Level: IP65
Data transfer: Radio
- To connect your 4 … 20 mA sensor
Interface: Relay
Measurement range: 0 / 1 (10 Hz)
Sensor supply: 2.7 V / 62 mA max
IP Level: IP65
Data transfer: Radio
- 2 channels
Interface: Impulse
Impulse frequency: 0 to 10 Hz
IP Level: IP65
Data transfer: Radio
- Wireless meter recorder
Interface: Level of voltage
Measurement range: 0… 2.5 V
IP Level: IP65
Data transfer: Radio
- Long signal range
- Industrial product
Interface: Level of voltage
Measurement range: 0…10 V
IP Level: IP65
Data transfer: Radio
Long signal range
- Industrial product
Interface: Level of voltage
Measurement range: -0.05 V to +0.05 V
IP Level: IP65
Data transfer: Radio
Long signal range
- Industrial product
Interface: Level of voltage
Measurement range: -5 V…+5 V
Number of channels: 5
IP Level: IP65
Data transfer: Radio
5 channels -5 V …+5 V
Long signal range
- Ideal to interface inclinometers
Interface: Gauge bridge
Measurement range : +/- 50 mV (for a 2.7 V excitation)
IP Level: IP65
Data transfer: Radio
- Long-term monitoring of changes and movements of a structure.
Interface: Vibrating wire
Number of channels: 4
Input range: From 300 Hz to 3500 Hz
Sensor supply: sequentially
IP Level: IP67
Data transfer: Radio
Structure instrumentation, Structural Health Monitoring
