The gateway between radio loggers & ethernet or 3G networks
Ethernet - 3G
Ethernet or 3G Gateway: the gateway between the radio data loggers and a the Webmonitor web application
The Newsteo Gateway allows remote collection, through Ethernet (IP) or 3G (GSM network), of data coming from several Newsteo data loggers, and storage on a remote secured server.
The Newsteo Gateway exists in several versions, for indoor or outdoor uses, with a main power supply or solar panels supply.
PFPN-COL92-001 : Indoor Ethernet Gateway, main power supply
PFPN-GAT43-001 : Indoor 3G Gateway, main power supply. Has a screen for easier installation.
PFPN-GAT33-001 : 3G Gateway, 12V cigarette lighter socket, for vehicles. Has a screen for easier installation and display of measurements.
PFPN-COL51-001 : Outdoor GPRS Gateway, solar panel power
How does it work?
The Data Logger equipped with a sensor takes the measure and transmits it by radio to the Gateway,
The Gateway transmits the measurements through Ethernet or 3G to a central database,
A real-time alert can be sent anywhere to the supervisor,
The supervisor can access at any time to the measures, via Internet
Displaying of the measures from the database
The web application Webmonitor:
Thin Client solution, simply connect to the website www.newsteo-webmonitor.com
Technical specifications
Reference
PFPN-COL92-001 : Indoor Ethernet Gateway
PFPN-GAT43-001 : Indoor 3G Gateway
PFPN-COL51-001 : Outdoor GPRS Gateway
Internal memory
60 000 measurements
Can store the measurements in case of loss transmission with the server (ADSL cut, loss of GPRS network …)
Transmission Gateway – Server
Transmission mode
PFPN-COL92-001 : Ethernet (IPv4 – 100Mbps)
PFPN-GAT43-001 : 3G
PFPN-COL51-001 : GPRS (2.5G)
GPRS antenna
PFPN-COL92-001 : Not applicable
PFPN-GAT43-001 :On board GSM antenna
PFPN-COL51-001 : On board GPRS antenna (not visible)
Subscription
PFPN-COL92-001 : ADSL subscription managed by the customer
PFPN-GAT43-001 & PFPN-COL51-001 : cellular network subscription + SIM card managed by the customer or supplied by Newsteo
Transmission Gateway – Datalogger
Transmission mode
Radio ISM 868 MHz
ISM radio antenna
PFPN-COL92-001 : Full wavelength antenna included
The antenna is provided with a magnetizable foot and a thin 3 meters cable. It can easily be re-positioned to optimize radio range
PFPN-GAT43-001 : Full wavelength antenna supplied
PFPN-COL51-001 : High-range full wavelength antenna
Radio range
PFPN-COL92-001 & PFPN-GAT43-001 : Several hundred meters, can pass through several walls
PFPN-COL51-001 : From 1 to several kilometers
Power supply
PFPN-COL92-001 : AC power connector (5V-48V DC input), AC adapter included
It’s also possible to feed the COL92 by Ethernet, for the compatible networks Power Over Ethernet. In this case, it’s necessary to supply Splitter POE reference PFPN-POE10-001
PFPN-GAT43-001 : AC power supplied, AC adapter included
PFPN-COL51-001 : 1 individual solar panel, with 3 Lithium Ion 12Ah reloadable batteries.
Battery life @25°C : 14 days without sun (a weak luminosity is enough to reload the battery).
IP level
PFPN-COL92-001 & PFPN-GAT43-001 : IP30
PFPN-COL51-001 : IP67
Screen
PFPN-GAT43-001 only
Display of 3G reception level, help with installation
Diagnostic LED
PFPN-COL92-001 : 3 LED
– Radio status
– Server connection status
– Power status
PFPN-COL51-001 : 6 LED
– Level / Load / State of the battery
– Status of the CPU
– Radio transmission
‐ Transmissions with the server
‐ GPRS transmission
Buzzer
PFPN-COL92-001 : N.A
PFPN-GAT43-001 & PFPN-COL51-001 : Buzzer which buzzes at the power on or reboot of the GPRS Gateway. It gives the quality of the GPRS signal / connection.
Connectors
PFPN-COL92-001 : – RJ-45 for Ethernet (cable 100 Base-T needed)
– Jack for power supply
– SMA for radio antenna
PFPN-COL51-001 : – SMA for radio antenna
Force transmission
PFPN-COL92-001 : Button to force transmission
PFPN-GAT43-001 & PFPN-COL51-001 : Magnet area : pass a magnet on it to force transmission
Data transmission
The Newsteo Gateway communicates with the remote Newsteo Webserver in ‘point-to-point’ mode, which limits the risk on the network itself. Newsteo has implemented the SSL protocol (port 443) to securize the data between the Gateway and the server.
The Newsteo Gateway product runs on a private operating system and does not use Linux or any other public OS. So, apart from the limited capabilities to communicate with Newsteo remote server, the Gateway does not contain any other generic network functions that would permit to enter Customer’s internal network through the Gateway.
Photo gallery

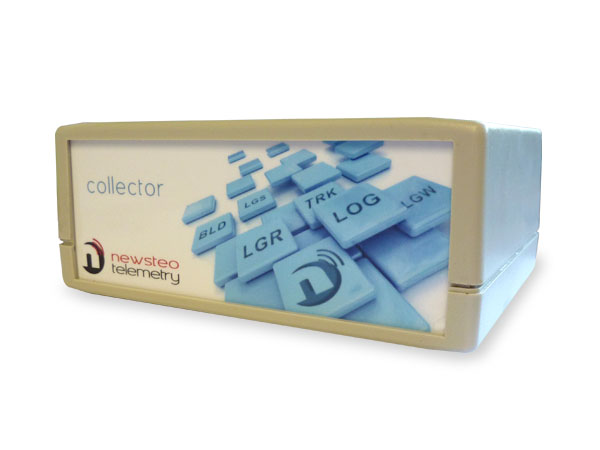

Ethernet Gateway
PFPN-COL92-001
Photo gallery
GPRS Gateway
PFPN-COL11-001
Photo gallery
GPRS Gateway
PFPN-COL51-001
