RF Monitor Premium : the convenient powerful MMI tool

The Newsteo RF Monitor gives the opportunity to remotely configure and control the distant wireless Newsteo products.

Software versions:

  • RF Monitor Premium: for single-site installations. The loggers communicate to a PC, the measurements are displayed only on this PC.

  • RF Monitor Gold: for multi-site installations. Several Loggers networks are created. Each system communicates to a PC that transmits the measurement to a central database. From anywhere in the world, it is possible to connect to the database to check the measurements. This consultation is possible with free software DB Monitor.
  • CFR 21 part 11 option: available either on the Premium or Gold version, the CFR option adds a module for a complete tracking of each action done on the software.
Call me back

Newsteo is at your service

We are at your service to inform you. Click on the button and we call you back.
Call me back

Mains characteristics of the software

RFM Premium RFM Premium CFR21 RFM Gold RFM Gold CFR21 DM Monitor
Reference RFM10 RFM40 RFM20  RFM30
License Included in RF-to-USB Premium Key Included in RF-to-USB Premium CFR21 Key Included in RF-to-USB Gold Key Included in RF-to-USB Gold CFR21 Key Without license
Setting of the Logger parameters X X X  X
Displaying of the measurements with features to sort them, to generate and print graphics X X X X
Automatic PDF report sending via e-mail X X X X
Measurement storage in a local data base X X X X
Alerts Log X X X X X
E-mail alert in case of logger alert X X X X X
Calibration tool X X X X
Range tester tool X X X X
CFR21 part 11 option: log of all the actions done through the software (setting, alerts…) X X X
Measurement storage in a remote data base shared between several sites X X
Remote access to the displaying of the measurements of the remote data base X X X
Management of different users with different levels of rights, access with password X X X X

*On purchase of a SMS credits pack from a Newsteo distributor.

Single-site solutions

RF MONITOR PREMIUM VERSION

RF Monitor Premium: Monitoring software for a single area

The Newsteo RF Monitor gives the opportunity to remotely configure and control the distant wireless Newsteo products. The software is available in French, English, German, Italian and Spanish.

Main characteristics of the software

Software license

The software license is included in the RF-to-USB Premium key. It is necessary that the key is inserted to communicate with the products. However, even if the key is not connected, it is always possible to view the measures already transferred to the PC and stored in the locale database.

rfm

To set the product parameters

  • Possibility to change the frequency/rate of measurement

  • Programmable min & max thresholds

  • Customize the product name and assign a description

rfm

To monitor the products

  • Displaying of the measurements

  • Displaying of the battery level of the product

  • Possibility to create interactive maps with your own photo/map on which the loggers will be placed and the corresponding measurements displayed

Alerts

  • Visual and audible alerts if the thresholds are exceeded

  • Real-time alerts by e-mail

PDF report through e-mail

  • With a few clicks, set the automatic generation of PDF reports and receive them by mail every day, week or month.

  • View a sample report

rfm

Calibration tool

  • Calibration tool accessible through RF Monitor

  • Possibility to have a calibration with multiple points

  • Calibration formula stored directly inside the logger

rfm

Data base storage

  • All the measurements transmitted or downloaded on the PC are stored inside a local data base

  • The data base software includes advanced functions to sort the measures, to create graphics

  • Measurements can be extracted to CSV tables files (EXCEL compliant) and/or PDF secured files
    For a data base shared between several areas, the RF Monitor Gold version is required

rfm

Installation tool

  • While positioning the loggers in the field, this tool gives radio level indications to the Installer for the best optimized localization

  • 14 levels indicator

rfm

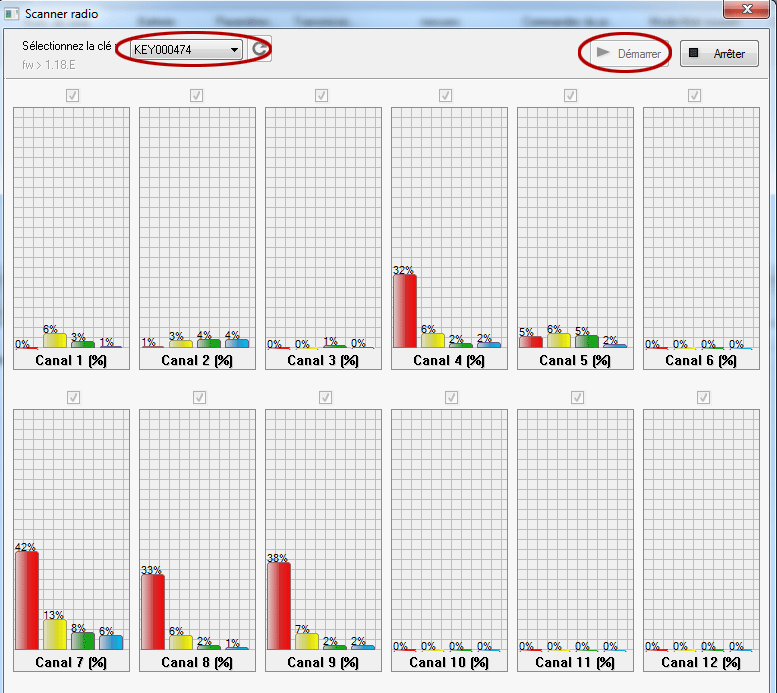

  • Tool to test the radio band occupation : allows to know if some radio channels are already used

To see more screen interfaces , you can also visit our online support center

CFR21 part 11 option

Title 21 CFR deals with the Food and Drug Administration (FDA) guidelines on electronic records and electronic signatures in Pharmaceutical industry. Part 11 defines the criteria under which electronic records and electronic signatures are considered to be trustworthy, reliable and equivalent to paper records.
CFR21 version of the Newsteo RF Monitor software allows being conformed to this standard.

RF Monitor Premium CFR21 software

  • The software license is included in the RF-to-USB key Premium CFR21

  • Has all the features of RF Monitor Premium software (Logger configuration, radio diagnostics …)

  • Multi-users management :
    – Management of the rights of each user
    – Authentication password

  • Alerts log on each action done on the software, possibility to track incidents and add comments

Lower required configuration for RF Monitor Premium

  • CPU 1GHz – RAM 500MB
  • Windows XP SP3,  Windows Vista, Win7 32 and 64 bits
  • 100 MB available hard disk
  • 1 USB slot
base COL

  • Depending on the number of loggers that communicate with the database and their frequency, this graph is used to evaluate the size of the database. The evaluation is given for use for a year. After one year, it is possible either to save and delete measurements, or to continue using the same base which size will continue to grow in the same proportions.
